I made a level converter sort of like the one here. Only with five 1.0 uf capacitors. According to the datasheet of the max232 the capacitors can be 1.0 or 0.1 uf.

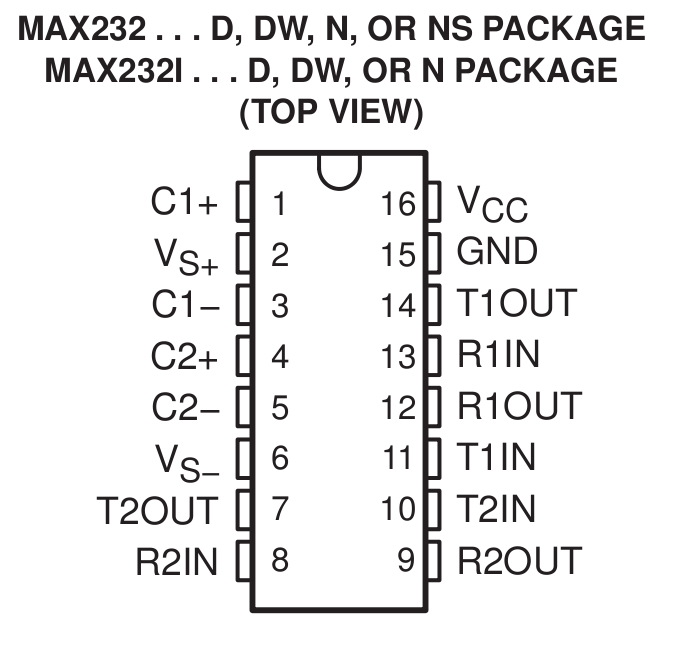

Pinout of the max232:
Pinout max232
