I own several Arduino's and shields.

Used this layout to connect The Pro Mini 328 to the Mini USB Adapter. But apparently this doesn't work because reset isn't pulled 'hard' enough or something. No biggie: just connected pin 3 from the Serial USB board to the 'next' pin on the 6 pin header. So eventually I connected 5 pins of the 6 and now it's working like a charm on the Pro 328 and the Pro mini 328. Me happy!

Link I used for my LikeJar Arduino on a breadboard.

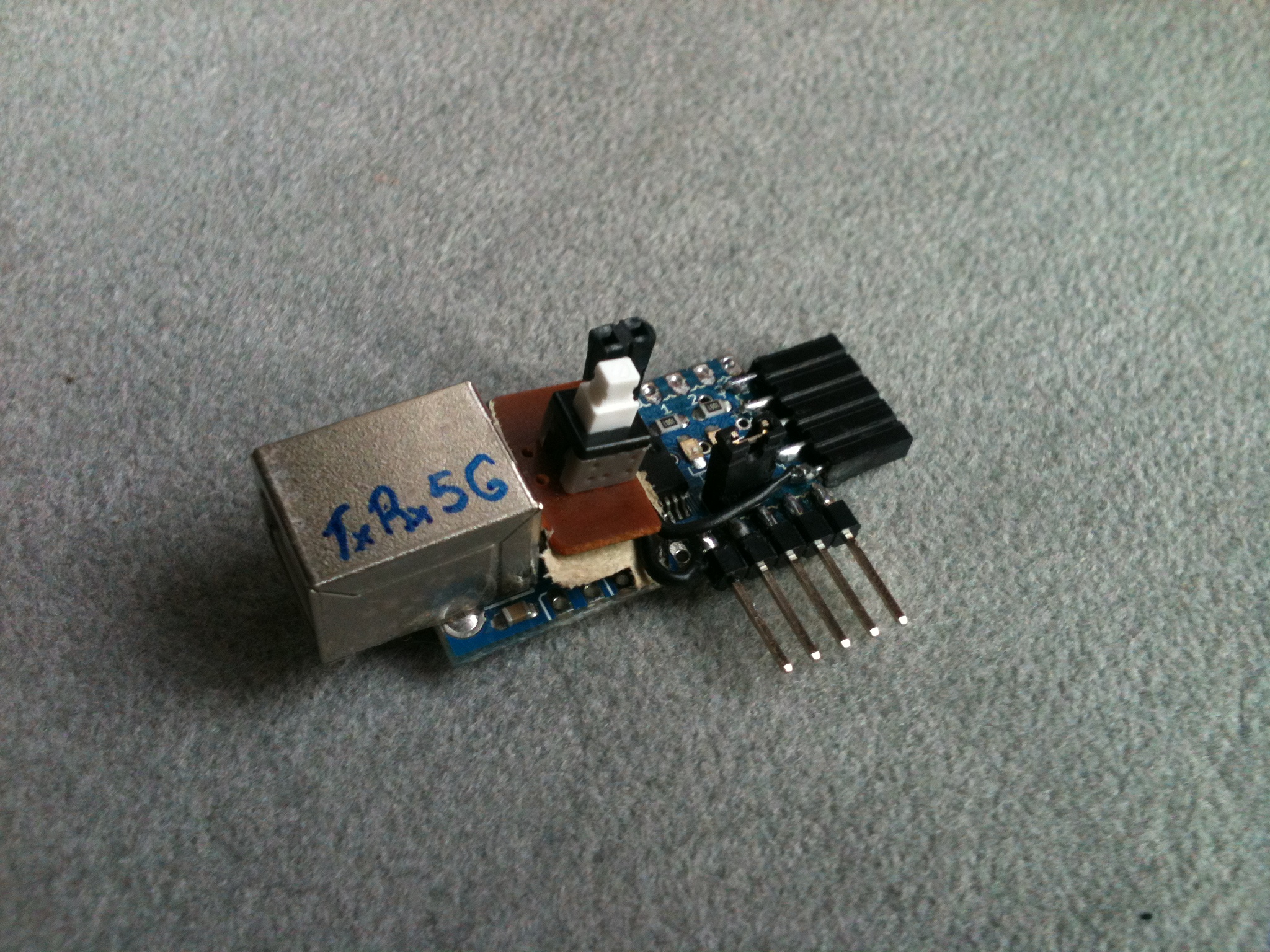

The switch is to disconnect the pin3 from the FTDI chip, to use the Arduino Pro Mini as a AVR programmer using the Arduino-ISP sketch.
The way it looks now.

Not really Arduino but handy (for me), links to other stuff in my component box.
